Rigid Galvanized Steel Conduit Specification |
||||||||
Standards: UL6 ANSI C80.1 IEC60981 NMX-J-534 CSA C22.2 |
||||||||
Trade Size |
Metric Designator |
Nominal Outside |
Nominal Wall Thickness |
Approx. Wt. Per 100FT. (30.5M) |
Product Code |
|||
in. |
mm |
in. |
mm |
lb. |
kg |
|||
1/2 |
16 |
0.84 |
21.3 |
0.104 |
2.6 |
82 |
37.2 |
127 |
3/4 |
21 |
1.05 |
26.7 |
0.107 |
2.7 |
109 |
49.4 |
91 |
1 |
27 |
1.315 |
33.4 |
0.126 |
3.2 |
161 |
73 |
61 |
1-1/4 |
35 |
1.66 |
42.2 |
0.133 |
3.4 |
218 |
98.9 |
61 |
1-1/2 |
41 |
1.9 |
48.3 |
0.138 |
3.5 |
263 |
119.3 |
37 |
2 |
53 |
2.375 |
60.3 |
0.146 |
3.7 |
350 |
158.7 |
37 |
2-1/2 |
63 |
2.875 |
73 |
0.193 |
4.9 |
559 |
253.5 |
19 |
3 |
78 |
3.5 |
88.9 |
0.205 |
5.2 |
727 |
329.7 |
19 |
3-1/2 |
91 |
4 |
101.6 |
0.215 |
5.5 |
880 |
399.1 |
10 |
4 |
103 |
4.5 |
114.3 |
0.225 |
5.7 |
1030 |
467.1 |
10 |
5 |
129 |
5.563 |
141.3 |
0.245 |
6.2 |
1400 |
634.9 |
7 |
6 |
155 |
6.625 |
168.3 |
0.266 |
6.8 |
1840 |
834.5 |
7 |

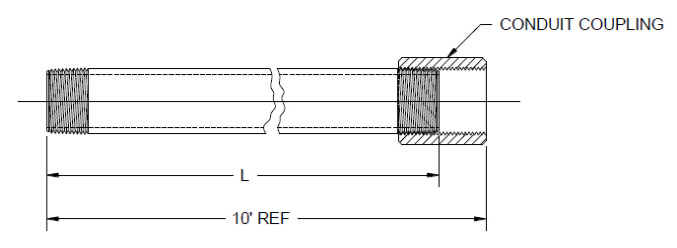

Length with coupling: 10ft./3.05m; Other
special length available upon request
Zinc coating: Hot-dipped galvanized; Average thickness 40um(300g/m2), above available on request
Thread: ANSI B1.20.1 NPT thread; One end with a coupling and another a
end-cap
Outside diameter tolerances:
+/-.015in.(.38mm) for trade size 1/2" through 1-1/2"
+/-1% for trade size 2" through 6"
Wall thickness tolerances: +/-12.5%
Length tolerances: 10ft./3.05m with a tolerance of
+/-.25"(6.35mm)
