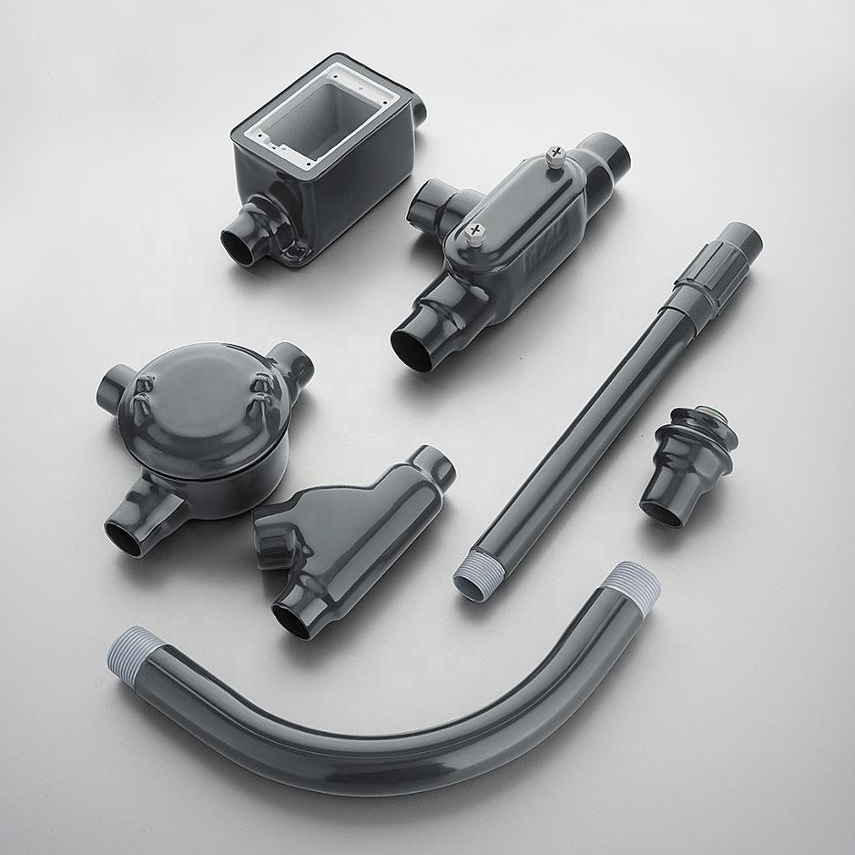

PVC coated rigid conduit is for harzardous envirment such as chemical fertilizer plants, gas transmission lines, offshore platforms, water and waste treatment plants etc.
Standards
PVC coated rigid conduit is UL and cUL listed to UL6
Features
1.The process begins with hihg quality hot rolled coil.
2.Produced by the electric resistance welding (ERW)process,removed the welding on-line, smooth cut ends, the finished tube is uniform in OD size, wall thickness, and ductility.
3.The finished tube is immersed in a molten zinc bath. This hot-dip galvanizing process enables the zinc to penetrate the steel, providing the best possible protection. After the tube is extracted from the zinc bath, super-heated steam is blownthrough the interior and over the outside of the conduit to remove any slag. The ends of the conduit are heated enough to blow excess zinc out of the thread cavities.
4.Ends are threaded, without burr and welding slag, zinc-coating protected.
5.Prior to the exterior PVC coating, 2 miles of polu urethance is applied to the inside diameter as well as the threads of each conduit.
6.After preheating the conduit, rolled through liquid, achiving complete coverage of 40 miles in thickness, without pinholes or bubbles.
Trade Size
1/2"-6"
Material |
Metal. Steel |
Head code |
Round |
Shape |
Equal |
Connection |
Female |
Size |
1/2"-6" |
Surface |
Thickness with PVC & PU Coated |
Length |
3-3.03m. Customized |
Standard |
UL6A ANSI C80.5 WW-C-540C |
Payment |
TT ,L/C, Western Union, PayPal, Bank |
Packing |
In bundles or we can packing it as your request |
Market |
North/South America, Middle East, Asia,Africa etc. |
Delivery time |
10 Days |
Rigid Galvanized Conduit Coupling Specification |
|||||||
Size |
OD |
OD with PVC |
Thickness |
Finished Thickness* |
Length |
U-Weight |
Packing |
|
mm (in.) |
mm (in.) |
mm (in.) |
mm (in.) |
m (ft.) |
kg/pcs (pound/pcs) |
pcs/ bundle |
1/2 |
21.3 |
23.3 |
2.64 |
3.71 |
3.03 |
3.67 |
127 |
3/4 |
26.7 |
28.7 |
2.72 |
3.79 |
3.03 |
488 |
91 |
1 |
33.4 |
35.4 |
3.20 |
4.27 |
3.02 |
7.19 |
61 |
1-1/4 |
42.2 |
44.2 |
3.38 |
4.45 |
3.02 |
9.78 |
37 |
1-1/2 |
48.3 |
50.3 |
3.51 |
4.58 |
3.02 |
11.72 |
37 |
2 |
60.3 |
62.3 |
3.71 |
4.78 |
3.02 |
15.64 |
37 |
2-1/2 |
73.0 |
75.0 |
4.90 |
5.97 |
3.01 |
24.77 |
19 |
3 |
88.9 |
90.9 |
5.21 |
6.28 |
3.01 |
32.36 |
19 |
3-1/2 |
101.6 |
103.6 |
5.51 |
6.58 |
3.00 |
39.18 |
10 |
4 |
114.3 |
116.3 |
5.72 |
6.79 |
3.00 |
45.96 |
10 |
5 |
141.3 |
143.3 |
6.20 |
7.27 |
3.00 |
61.98 |
7 |
6 |
168.3 |
170.3 |
6.76 |
7.83 |
3.00 |
80.79 |
7 |
