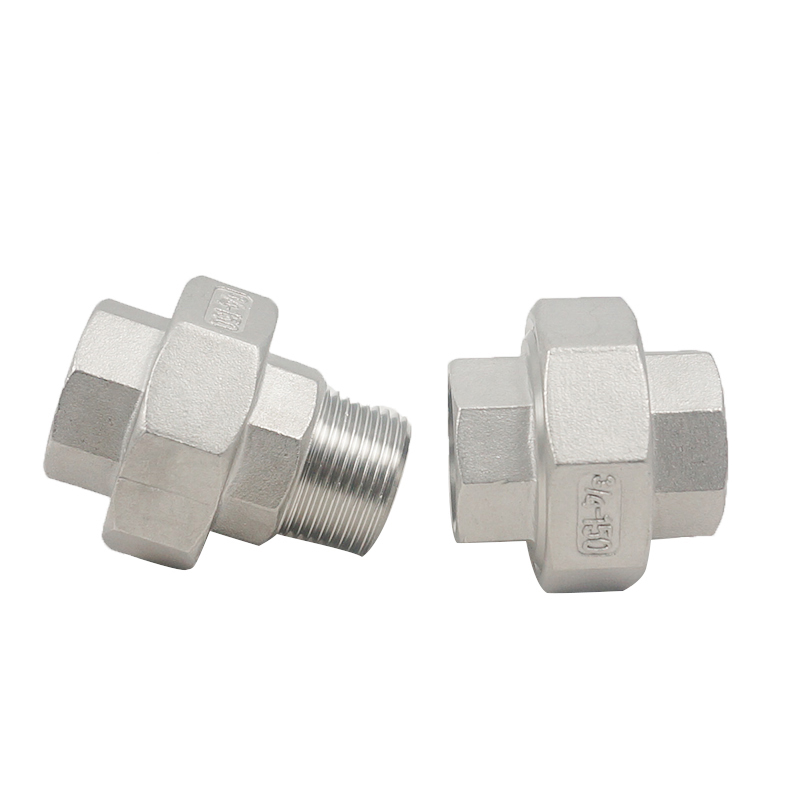

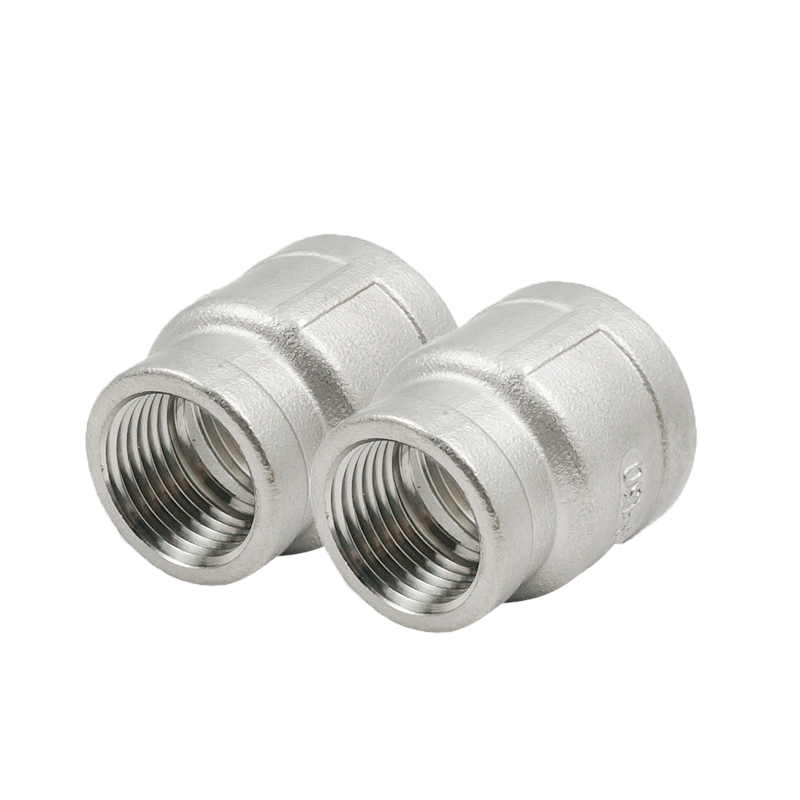

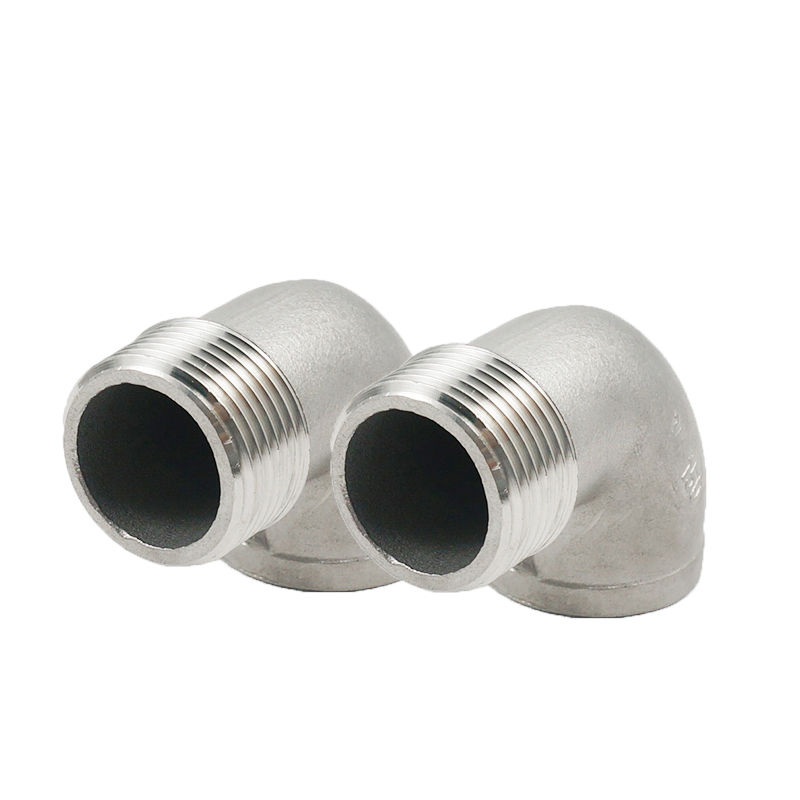

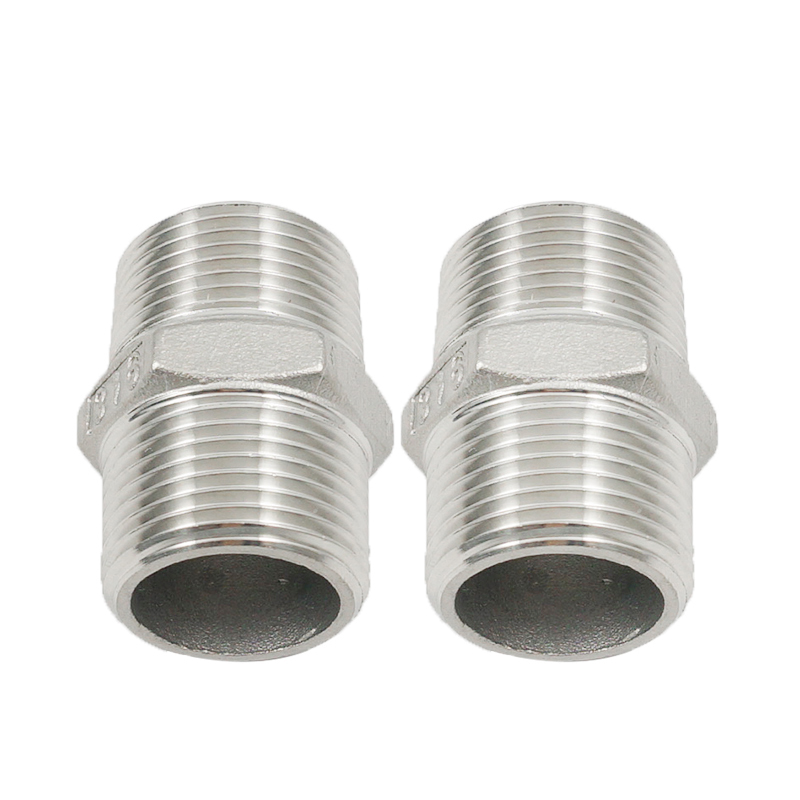

NPT SS Fittings

Material

Stainless steel 304/ 304L/316/316L/201

Standard

Thread:BSPT(ISO 7/1),NPT(ASME B16.3)

Dimension:ISO 49,DIN 2950,EN10242

Physical Property

Tensile strength>=350Mpa,Elongation>=10%,Hardness<=150HB

Testing Pressure

2.5MPa

Working Pressure

1.6MPa

Model

Elbow,Tees,Crosses,Bends,Unions,Bushing,Lateral Braches,Sockets,Nipples,Hexagon/Round,Caps,Plugs,Locknuts,Flanges,Side outlet Tees,Side Outlet Elbows and etc

Connection

Male,Female

Shape

Equal,Reducing

Certificate

FM,UL,CE,AS4020,BSI,ANAB,ISO9001

Application

Suitable for fire piping system,air,gas,oil and so on

Buyer's drawing or designs are available

Package

Cartons without pallet

Cartons with pallet

Double woven bags

Or as buyer's requirements

Delivery Details

According to the quantities and specifications of each order

Normal delivery times is from 30 to 45 days after receiving the deposit
